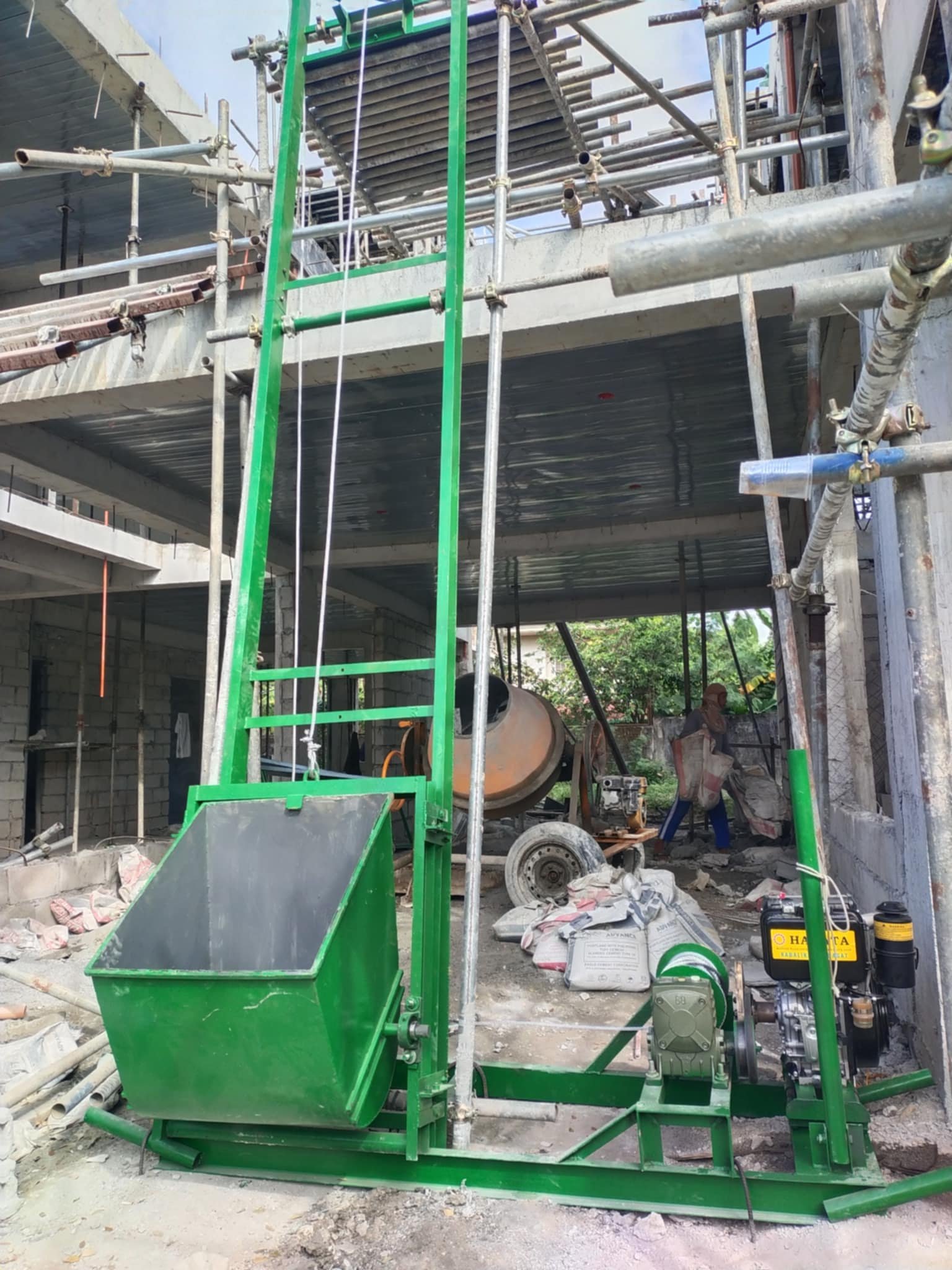

Portalift
Portalift helps prevent workplace injuries and reduce the risk of accidents. They are easy to operate and can be customized to fit specific needs.
| Details |
| 3 Meters per height |
| Japan Motor Hakata Brand (Diesel and Electric) |
| 1 Pc Bucket with Frame |
| 1 Pc BaseFrame with Speed Reducer |
| (1:20 Ratio) & Drumwire |
| 1 Roll of wirerope (Galvanized) |
| 1 Pack bolts and nuts |
| Coated: Primer/Green or Dark Green Coat Spray Paint |
| Material: Channel Bar 2x4x4mm |
Free assistance Upon Installation | Free Delivery Within Metro Manila | Lifetime Service Warranty For Engine Only | GI Pipes and Clamp for Bracing are not included. Unit Only | We Accept Order Via Trucking Services For Customers in Part of Luzon, Visayas, and Mindanao. |

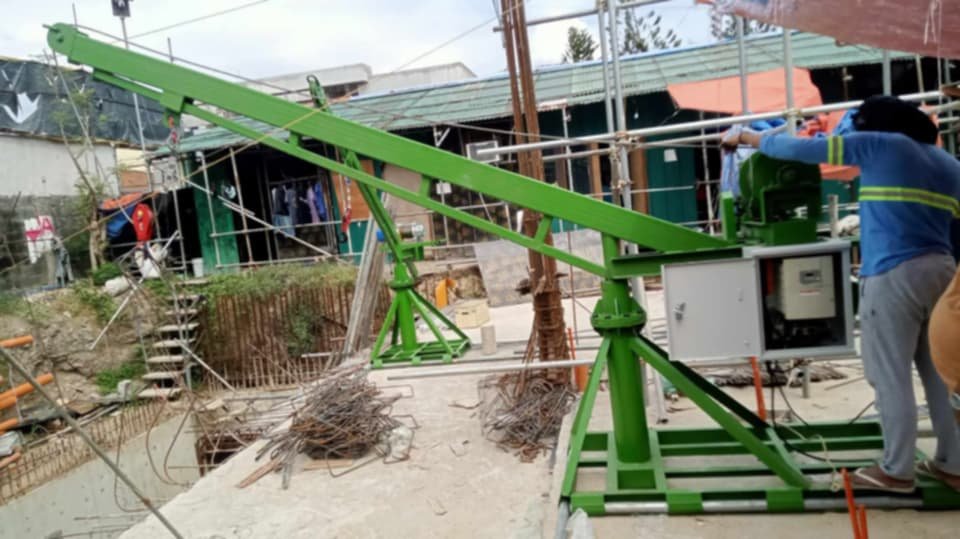

Mini Boom Crane
Mini boom crane are a type of compact lifting equipment that has become increasingly popular in recent years due to their ability to lift heavy loads in confined spaces.
| Details |
|---|
| Code | Specs |
| I-1-001 | 600kg to 1.2tons w/ single phase inverter/transformer with 70 meters wire rope 10mm |
| 5-hp / 3.7-kw (60hz) 220v / 330v / 440v / 14.0 / 8.10 / 7.00 (C IP-54) Insolation. Grade (F) |
1 YEAR WARRANTY SERVICES FOR MOTOR HOIST ONLY |

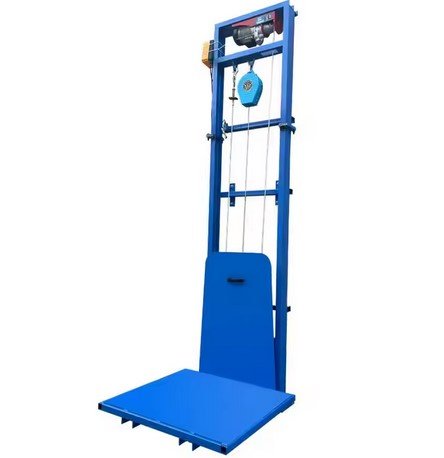

Cargo lift Elevator Heavy Duty
The cargo lift system is a fixed freight elevator and a non-scissor freight elevator. It is suitable for the transfer of goods between the second and third floors of buldings.
| Code | Capacity/Lift height/Cable |
| F-1-001 | 500kg / 6 Meters / 8mm |
| F-1-002 | 500kg / 9 Meters / 8mm |
| F-1-003 | 300kg / 12 Meters / 8mm |
| -6 meters 6mm 500kg capacity self weight- 160kg |
| -9 meters 6mm 500kg capacity self weight- 270kg |
| -12 meters 8mm 300kg capacity self weight- 340kg |
| Dimension |
| 3 Meters Height for 1 frame |
| width frame - 80cm |
| Platform Sizes - 1.10 x 1m |
| with Covered Cage for Safety |
| 1 ton Capacity Motor Hoist Cable |
| And Safety Fall Arrested Wire |
| Wireless Remote Controller |
| 1 Year Warranty for motor parts only |
