THE STANDARDS are economical and can match any propping access application where they allow support or access needed. Made from the highest quality.

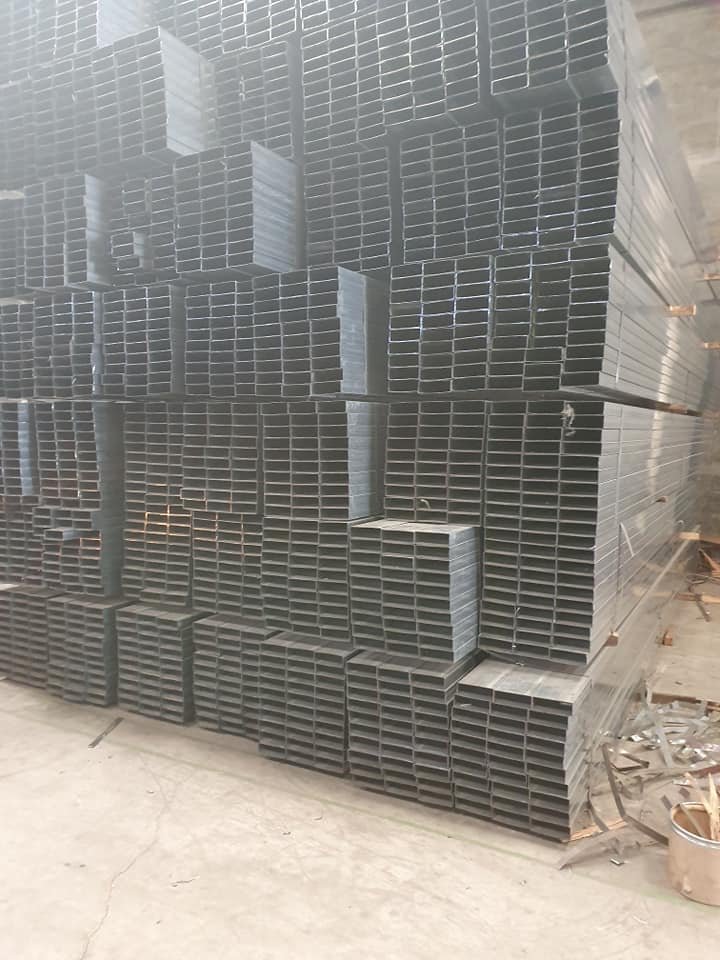

G.I Tubular
THE STANDARDS are economical and can match any propping access application where they allow support or access needed. Made from the highest quality.
| Diameter |
Size |
Mass |
| 3/4"X3/4" |
1.2mm |
3.2kg |
| 3/4"X3/4" |
1.5mm |
4.2kg |
| 1"X1" |
1.2mm |
4.2kg |
| 1"X1" |
1.5mm |
5.2kg |
| 1"X2" |
1.2mm |
6.2kg |
| 1"X2" |
1.5mm |
8kg |
| 1"X3" |
1.2mm |
8.5kg |
| 1"X3" |
1.5mm |
10.5kg |
| 1 1/2"X1 1/2" |
1.2mm |
6.2kg |
| 1 1/2"X1 1/2" |
1.5mm |
8kg |
| 2"X2" |
1.2mm |
8.5kg |
| 2"X2" |
1.5mm |
10.5kg |
| 2"X3" |
1.2mm |
10.5kg |
| 2"X3" |
1.5mm |
13.5kg |
| 2"X4" |
1.2mm |
12.5kg |
| 2"X4" |
1.5mm |
14.5kg |
| 2"X6" |
1.2mm |
19kg |
| 2"X6" |
1.5mm |
22kg |

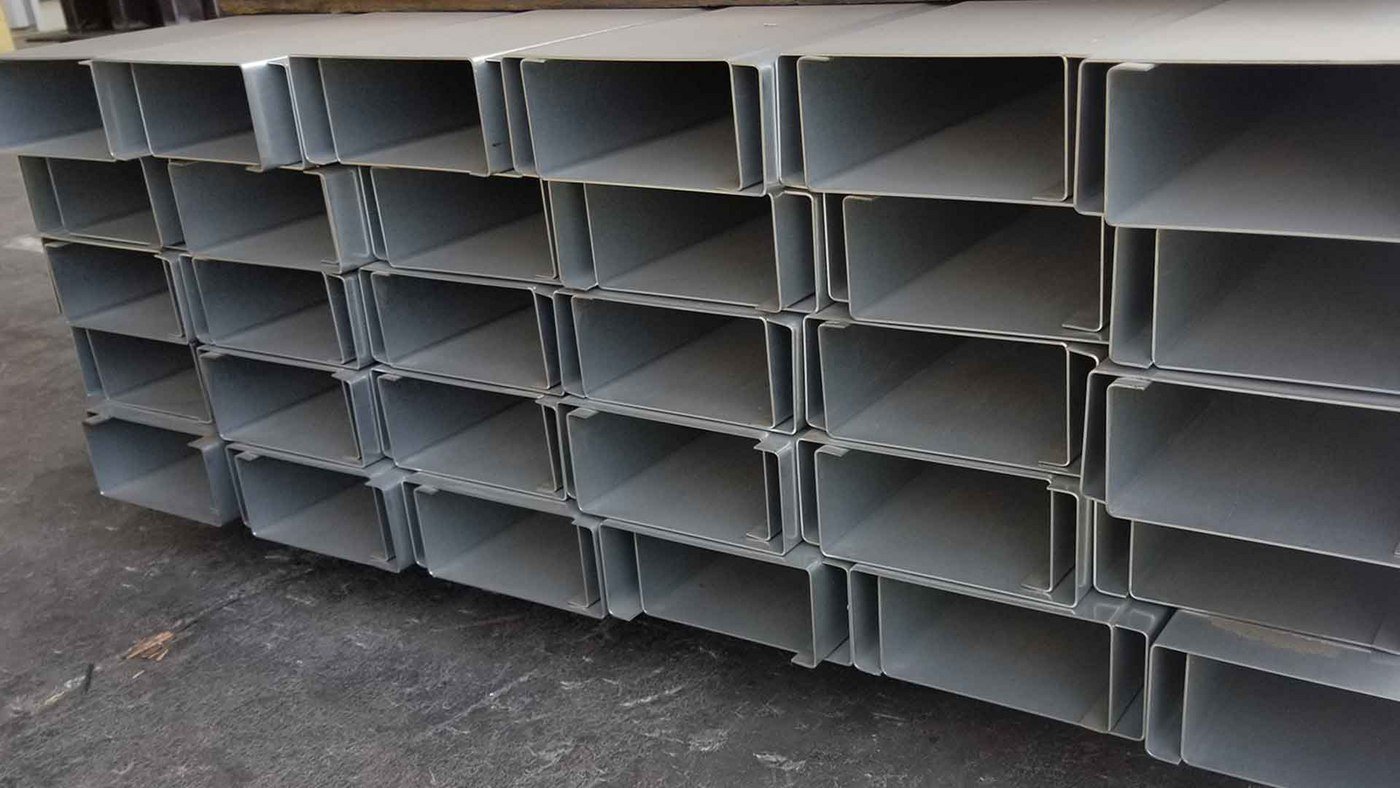

C-Purlins
Steel purlin is usually made of cold-formed steel that is thin enough to put screws through. Cold-formed steel is made by rolling or pressing thin sheets of steel into the desired shape. It is less expensive for the manufacturer than hot-rolled steel and is also easier to work with. Though cold-formed steel is stronger than hot-formed steel, it is more likely to break when under pressure rather than bend.
| Size |
Mass |
MM |
| 2X3 |
6.5kg |
1mm |
| |
8kg |
1.2mm |
| |
10kg |
1.5mm |
| 2X4 |
7.6kg |
1mm |
| |
9.5kg |
1.2mm |
| 2X6 |
9.5kg |
1mm |
| |
11.9kg |
1.2mm |
| |
14.27kg |
1.5mm |
| |
17.84 |
1.8mm |
